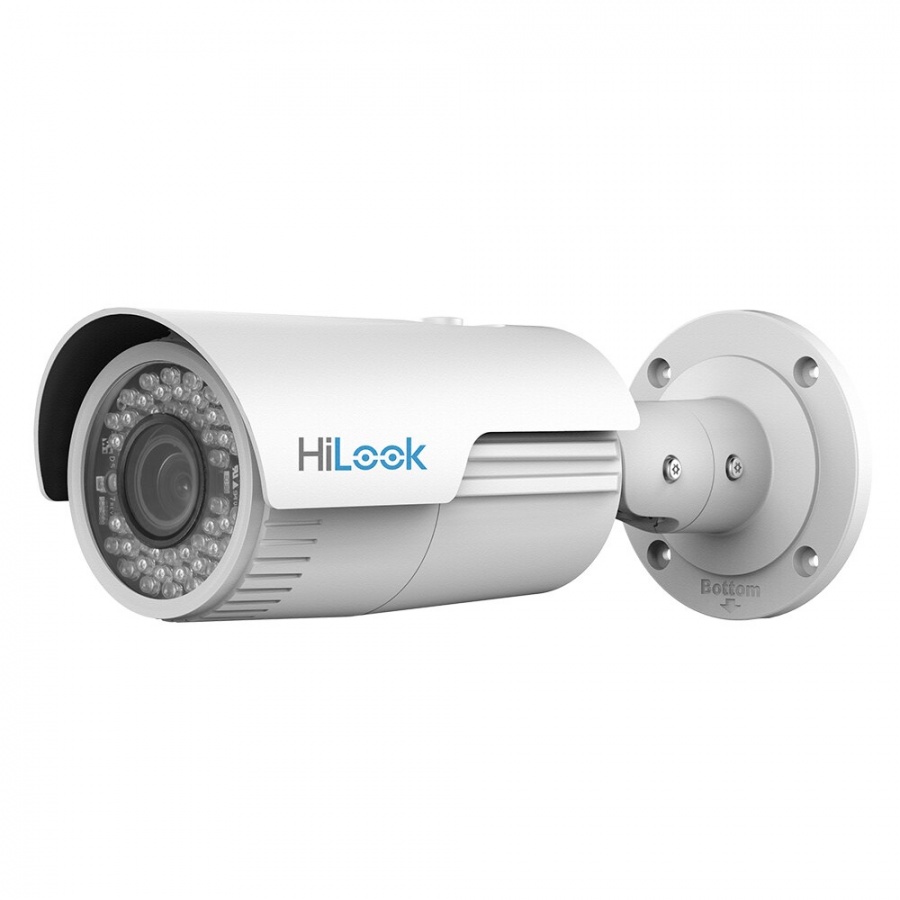

Camera
Image Sensor:
1/2.8" Progressive Scan CMOS
Min. Illumination:
Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
Slow shutter:
support
Shutter time:
1/3 s to 1/100, 000 s
Lens:
2.8 to 12 mm
Horizontal field of view: 98° to 34°
Vertical field of view: 51° to 19°
Diagonal field of view: 115° to 40°
Lens Mount:
φ14
Adjustment Range:
Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Day& Night:
IR Cut Filter
Wide Dynamic Range:
Digital WDR
Digital noise reduction:
3D DNR
Focus:
-V: Manual；-Z: Auto
Compression Standard
Video Compression:
H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:
Baseline Profile/Main Profile/High Profile
Video bit rate:
32Kbps~8Mbps
Max. Image Resolution:
1920 x 1080
Frame Rate:
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement:
BLC, 3D DNR
Image Settings:
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
BLC:
Support
Day/Night Switch:
Auto, scheduled
Network
Network Storage:
Support Micro SD/SDHC/SDXC card (128G), local storage and ANR
Alarm Trigger:
Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
System Compatibility:
ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface:
1 RJ45 10M/100M self-adaptive Ethernet port
Video Output:
1Vp-p Composite Output (75 Ω, BNC)
Reset Button:
Yes
General
Operating Conditions:
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:
12 V DC ± 20%, PoE (802.3af, class 3)
Power Consumption:
-Z: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W
-V: 12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W
Weather Proof:
IP67
IR Range:
Up to 30m
Dimensions:
105 mm × 105 mm × 145 mm (4.1" × 4.1" × 5.7")
Weight:
Camera: approx. 1015 g (2.2 lb.)
With package: approx. 1540 g (3.4 lb.)
