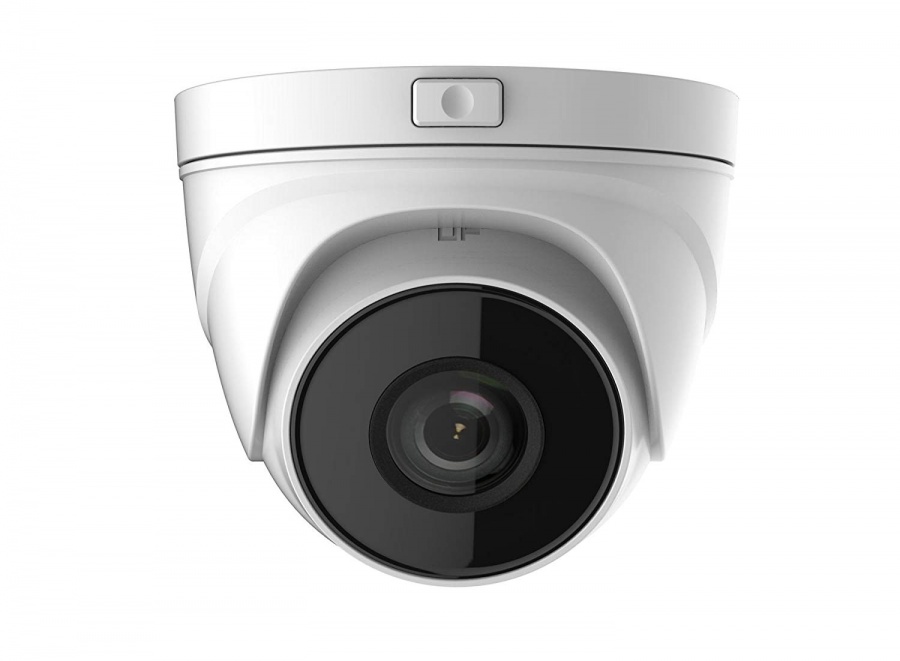

Ficha técnicaCamera
Image Sensor:
1/2.8" Progressive Scan CMOS
Min. Illumination:
Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
Slow shutter:
support
Shutter time:
1/3 s to 1/100, 000 s
Lens:
Horizontal field of view: 98°to 34°
Vertical field of view: 52°to 19°
Diagonal field of view: 116°to 40°
Lens Mount:
φ14
Adjustment Range:
Pan: 0° to 355°, tilt: 0°to 70°, rotation: 0° to 360°
Day& Night:
IR Cut Filter
Wide Dynamic Range:
Digital WDR
Digital noise reduction:
3D DNR
Compression Standard
Video Compression:
H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:
Baseline Profile/Main Profile/High Profile
Video bit rate:
32Kbps~8Mbps
Dual Stream:
Yes
Max. Image Resolution:
1920 x 1080
Frame Rate:
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement:
BLC, 3D DNR
Image Settings:
Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
BLC:
Support
Day/Night Switch:
Auto, scheduled
Network
Network Storage:
Support Micro SD/SDHC/SDXC card (128G), local storage and ANR
Alarm Trigger:
Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:
ONVIF (Profile S, Profile G),ISAPI
General
Operating Conditions:
-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply:
12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:
-Z: 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W
-V: 12 VDC, 0.5 A, Max: 6 W; PoE: (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, Max: 8 W
Impact Protection:
IK10
Weather Proof:
IP67
IR Range:
Up to 30m
Dimensions:
Camera:? 141 mm × 99.6 mm (? 5.6" × 3.9")
With package: 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
Weight:
Camera: Approx. 830 g (1.8 lb.)
With package: Approx. 1070 g (2.4 lb.)
